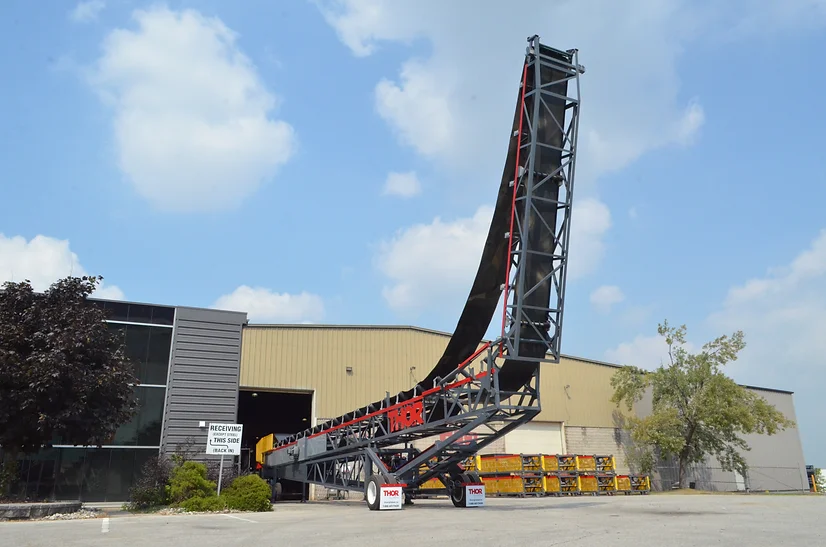

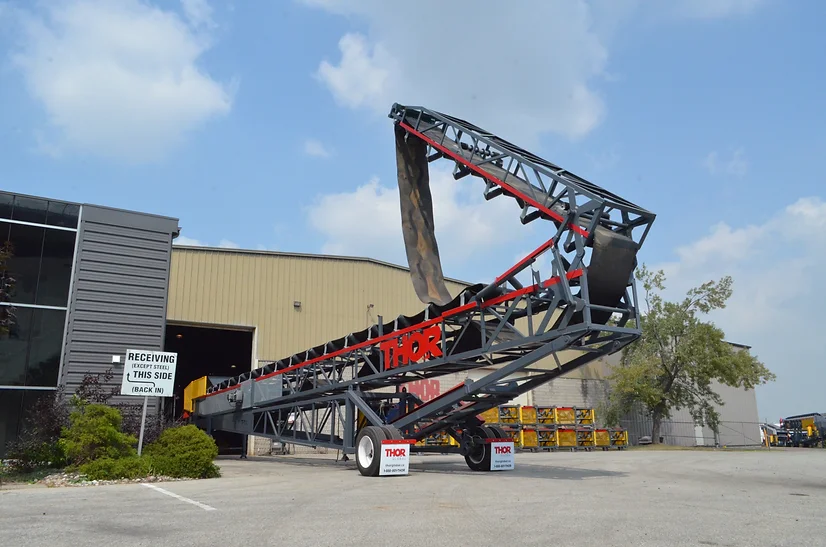

TOP FOLD
PORTABLE RADIAL CONVEYOR
THE THOR TOPFOLD is our top premium duty HIGHLY TRANSPORTABL CONVEYOR.
The Top Fold is designed for simple stockpiling coupled with easy transportation available in both a swing and hammer option.
WHY CHOOSE THE TF?
TF 80x36
0800
36 inch belt
80 ft
800 stph
SINGLE FOLD
TF 110x36
0800
36 inch belt
110 ft
800 stph
SINGLE FOLD
TF 130x36
0800
36 inch belt
10 ft
800 stph
DUAL FOLD
TF 150x36
0800
36 inch belt
150 ft
800 stph
DUAL FOLD
%20%26%20Tensioning%20system.jpg)
BELT SCRAPERS & TENSIONING SYSTEM
PATENTED
Situated at the discharge end on both conveyors, Thor’s exclusive twin-edge belt scrapers are designed for a cleaner return and longer belt life. All scrapers are manufactured using a tough ¾” thick, 10” wide urethane blade combined with an extension spring. The blade is reversible for double lifespan. The PATENTED belt scraper tensioning system provides maximum control and better usage of the blade.
Belt Splice:
HOT Vulcanized
All belt splices are hot vulcanized in house to ensure greater belt life for all of our end users. Vulcanizing also prolongs the life of the belt scraper. Thor Global uses premium quality and high tensile strength belting.
Contactors: IEC
Thor Global is very aware that bulk material handling environments can be extremely harsh on electrical components. This is why the conveyor uses over sized IEC contactors for all applications to provide a more robust system
Gear Reducers: CLASS 2
Dodge, always CLASS 2 with no need to upgrade from CLASS 1.
SF
| STANDARD FEATURES
Idlers: CEMA C
Nordstrong CEMA C idlers are standard on all machines. They are intended to last twice as long as CEMA B. Thor uses nothing less than the best!
Safety Guarding
PVC coated wire mesh guarding surrounding the main conveyor and safety guards at all pinch points provide ultimate protection for all operators and personnel within close range of the conveyor.
Steel: 60,000 psi
Thor Global uses 60,000 psi yield strength steel versus the industry norm of 45,000 psi yield strength for all HSS (Hollow Structural Section) tubing. This FINER grain steel provides additional strength without additional weight.
Tail Pulley Kicker Bar
A kicker bar is attached to the tail pillow block bearings of the inner and outer conveyors to keep material off the pulley, which prevents tracking and belt damage.
OF
| OPTIONAL FEATURES
Anchor Pad: Portable
Thor has developed a strong steel fabricated anchor pad that is very compact and portable. The anchor pad conveniently fits into the receiving hopper for transport.
RECEIVING Chute: Custom
A customized box shaped design has tapered sides with a wider feed opening. Other custom designs are available upon request.
Colour: Custom
We understand the importance of corporate image, so we at Thor Global will always try to meet the specific requests of our customers as best as we can.
Dual Drive
An optional second radial drive allows the conveyor to maintain traction in the most demanding conditions.
Galvanizing: Hot-Dip
Realizing that some customers have to work in harsh environments with corrosive materials, Thor is the first and only manufacturer to provide a unit that can withstand your tough environment. Machines are fully Hot-Dip galvanized before assembly. Hot-Dip Galvanizing relieves the internal stresses of welded components, providing a fully stress relieved structure. Zinc has a very high relative corrosion resistance.
HAMMER AXLE
Hydraulically operated “push down” axles lift the machine to allow quick and easy movement of the machine without the need to move the main axle from radial to transport mode.
Transport Landing Legs: Hydraulic complete with 12v power pack
Hydraulic landing legs provide the same benefits as regular landing legs with the added flexibility of lowering the conveyor into operating mode after it is unhooked from the transport truck. Hydraulic landing legs may also be used to raise the conveyor onto a transport truck.
Wireless Remote Control
This system allows wireless remote control operation of the conveyor for movements such as telescoping in and out, or luffing and slewing. Wireless remote control provides increased visibility and flexibility. Wireless remote control is ideal for ship loading applications where visibility from the main control panel is limited.
